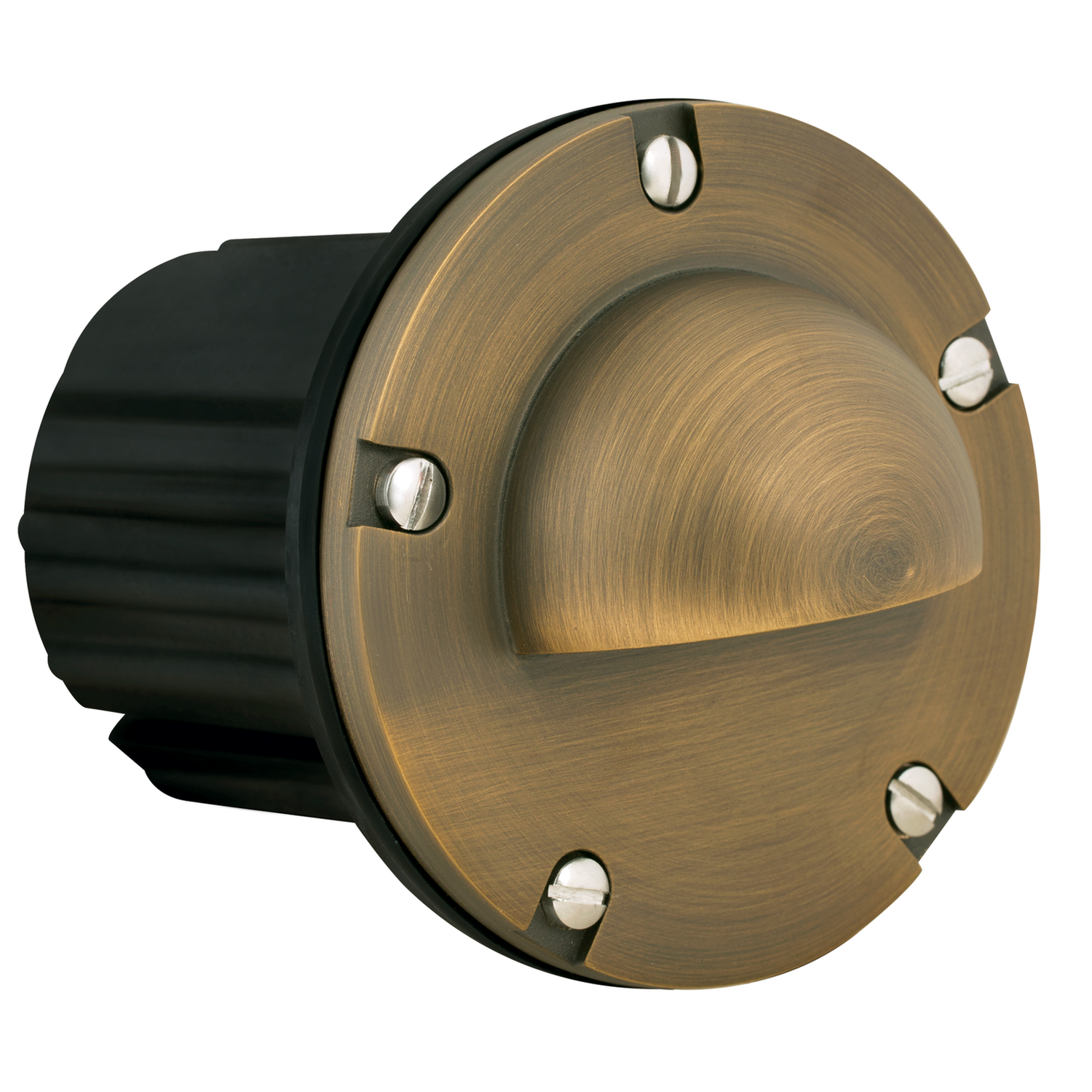

Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Includes MR16 LED lamp: 5W, 450 Lumens, 2700K, 15° narrow beam, dimmable; rated life 50,000 hours; 50W halogen equivalent; operating range 9–17V
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for precise aiming
- Dimensions: face Dia 4-7/8", 6" overall length, approx 4-5/8" depth
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Installation: surface mount, recessed, or concrete encased
- Requires remote 12V magnetic transformer (not included)
- ETL listed
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Includes MR16 LED lamp: 5W, 450 Lumens, 2700K, 15° narrow beam, dimmable; rated life 50,000 hours; 50W halogen equivalent; operating range 9–17V
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for precise aiming
- Dimensions: face Dia 4-7/8", 6" overall length, approx 4-5/8" depth
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Installation: surface mount, recessed, or concrete encased
- Requires remote 12V magnetic transformer (not included)
- ETL listed
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 15° Narrow Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step and brick light
- Die-cast brass faceplate with injection-molded composite housing for high UV stability
- Includes MR16 LED lamp: 5W, 450 Lumens, 2700K, 15° narrow beam, dimmable; rated life 50,000 hours; 50W halogen equivalent; operating range 9–17V
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for precise aiming
- Dimensions: face Dia 4-7/8", 6" overall length, approx 4-5/8" depth
- Prewired with 3 ft 18-2 SJT-W direct-burial cord
- Installation: surface mount, recessed, or concrete encased
- Requires remote 12V magnetic transformer (not included)
- ETL listed
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 15° Narrow Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 15° Narrow Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
