Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 450 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

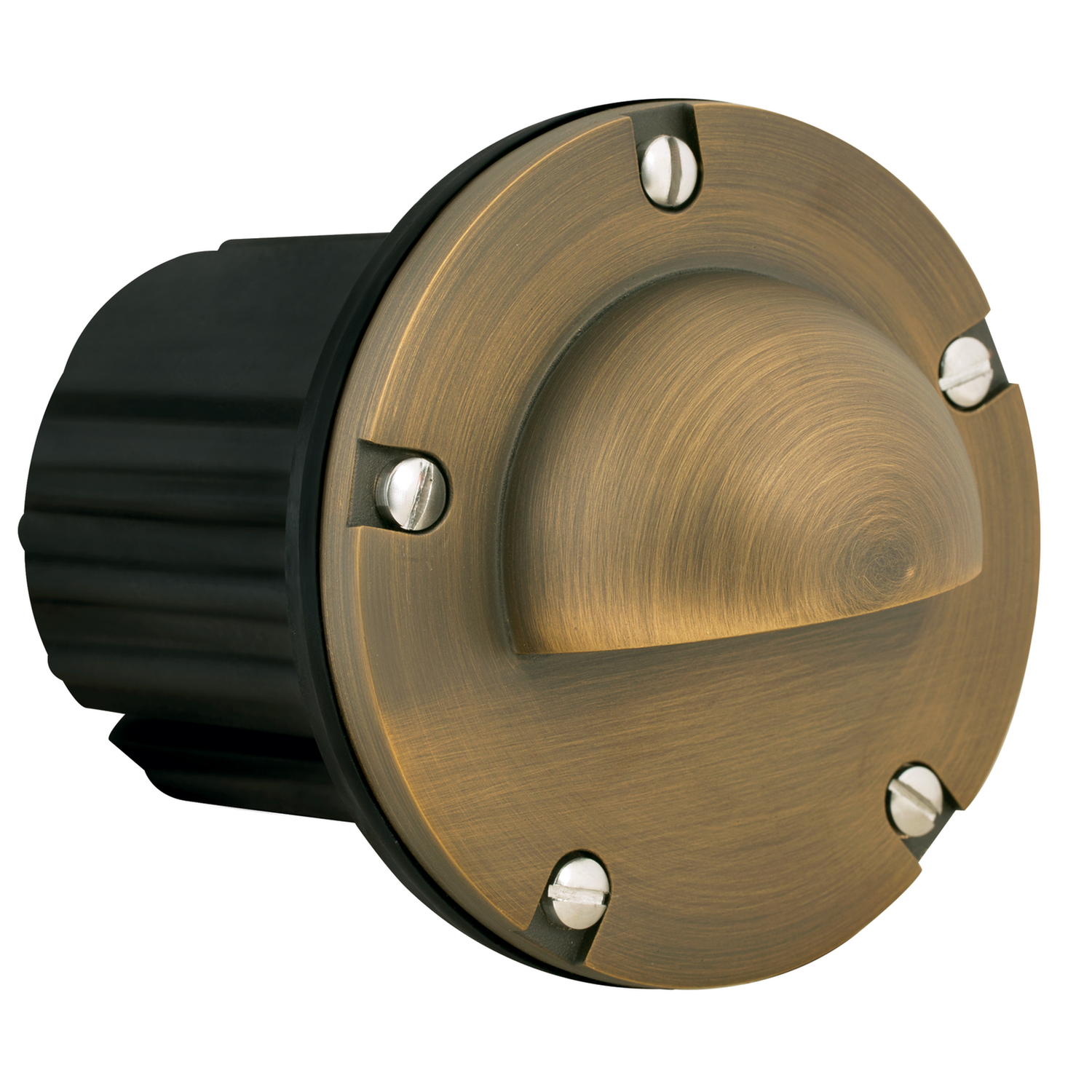

This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-Moon step and brick light with frosted flat glass lens and Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing, high UV stability, and silicone O-ring weather seals
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming; uses Teflon-jacketed leads
- Included lamp: 5W MR16 COB wide flood LED, 450 Lumens, 2700K, 60° beam angle, CRI 80, dimmable, ~50,000-hour life; operates 9–17V
- Requires remote 12V magnetic transformer
- Compatible with LED or halogen MR16 lamps
- Surface mount hardware supplied
- Can be recessed into wall or used in-ground with direct burial or concrete encasement; concrete pour kit sold separately
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connectors sold separately
- Dimensions: 4-7/8" Dia face x 6" overall length x ~4-5/8" depth
- Limited lifetime warranty on brass faceplate; 10-year warranty on housing; 5-year warranty on lamp
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-Moon step and brick light with frosted flat glass lens and Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing, high UV stability, and silicone O-ring weather seals
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming; uses Teflon-jacketed leads
- Included lamp: 5W MR16 COB wide flood LED, 450 Lumens, 2700K, 60° beam angle, CRI 80, dimmable, ~50,000-hour life; operates 9–17V
- Requires remote 12V magnetic transformer
- Compatible with LED or halogen MR16 lamps
- Surface mount hardware supplied
- Can be recessed into wall or used in-ground with direct burial or concrete encasement; concrete pour kit sold separately
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connectors sold separately
- Dimensions: 4-7/8" Dia face x 6" overall length x ~4-5/8" depth
- Limited lifetime warranty on brass faceplate; 10-year warranty on housing; 5-year warranty on lamp
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 450 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-Moon step and brick light with frosted flat glass lens and Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing, high UV stability, and silicone O-ring weather seals
- Adjustable ceramic bi-pin MR16 socket tilts ±25° for aiming; uses Teflon-jacketed leads
- Included lamp: 5W MR16 COB wide flood LED, 450 Lumens, 2700K, 60° beam angle, CRI 80, dimmable, ~50,000-hour life; operates 9–17V
- Requires remote 12V magnetic transformer
- Compatible with LED or halogen MR16 lamps
- Surface mount hardware supplied
- Can be recessed into wall or used in-ground with direct burial or concrete encasement; concrete pour kit sold separately
- Prewired with 3 ft 18-2 SJT-W direct-burial cord; wire connectors sold separately
- Dimensions: 4-7/8" Dia face x 6" overall length x ~4-5/8" depth
- Limited lifetime warranty on brass faceplate; 10-year warranty on housing; 5-year warranty on lamp
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 450 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 450LM |
| Efficacy | 94LM/W |
| Wattage | 5W |
| Wattage Equivalency | 50W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate; injection-molded composite housing |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited lifetime on brass faceplate and 10 years on housing for manufacturer defects; 5-Year manufacturer warranty on the lamp |
