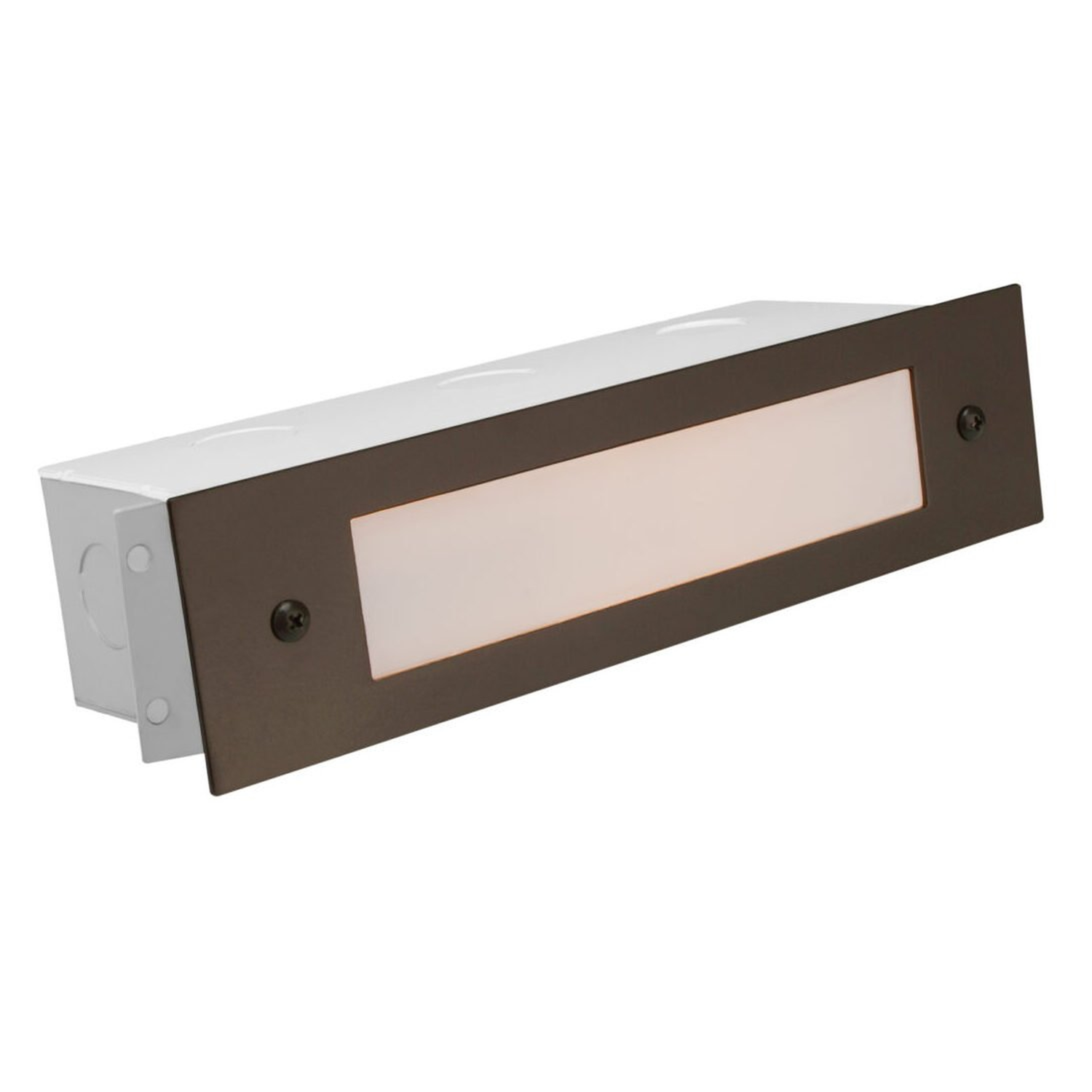

Lensed Brick Step Light, Recessed, 9 Inch, Bronze, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Bronze lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum lensed step/brick light with frosted high-impact polycarbonate lens and Faceplate
- Faceplate size: 9" W x 2-1/4" H; polyester UV-coated finish
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars, silicone gasket seal, and 3 x 1/2" NPT conduit inlets
- 12V system; requires remote transformer; LED lamp operating range 8–21V
- Two SCB bayonet sockets; includes 2x bayonet LED lamps (2W each, 200 lumens at 2700K and 210 lumens at 3000K per lamp, CRI 80, dimmable, 25,000-hour life); output applies to each included lamp, and total fixture output is not stated
- Fixture prewired with 12" direct-burial lead
- Maximum bulb allowance: 27W per socket
- Finish options: Black, Bronze, Rust, White
- Warranty: 5-year fixture warranty
This Bronze lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum lensed step/brick light with frosted high-impact polycarbonate lens and Faceplate
- Faceplate size: 9" W x 2-1/4" H; polyester UV-coated finish
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars, silicone gasket seal, and 3 x 1/2" NPT conduit inlets
- 12V system; requires remote transformer; LED lamp operating range 8–21V
- Two SCB bayonet sockets; includes 2x bayonet LED lamps (2W each, 200 lumens at 2700K and 210 lumens at 3000K per lamp, CRI 80, dimmable, 25,000-hour life); output applies to each included lamp, and total fixture output is not stated
- Fixture prewired with 12" direct-burial lead
- Maximum bulb allowance: 27W per socket
- Finish options: Black, Bronze, Rust, White
- Warranty: 5-year fixture warranty
Overview
This Bronze lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Aluminum lensed step/brick light with frosted high-impact polycarbonate lens and Faceplate
- Faceplate size: 9" W x 2-1/4" H; polyester UV-coated finish
- Heavy-duty corrosion-resistant galvanized steel recessed mounting box with self-leveling adjustable bars, silicone gasket seal, and 3 x 1/2" NPT conduit inlets
- 12V system; requires remote transformer; LED lamp operating range 8–21V
- Two SCB bayonet sockets; includes 2x bayonet LED lamps (2W each, 200 lumens at 2700K and 210 lumens at 3000K per lamp, CRI 80, dimmable, 25,000-hour life); output applies to each included lamp, and total fixture output is not stated
- Fixture prewired with 12" direct-burial lead
- Maximum bulb allowance: 27W per socket
- Finish options: Black, Bronze, Rust, White
- Warranty: 5-year fixture warranty
Specifications
| Lensed Brick Step Light, Recessed, 9 Inch, Bronze, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 9" W x 2-1/4" H |
| Finish | Bronze |
| Material | Aluminum |
| Lifetime | 25,000 Hours |
| Warranty | Limited warranty on aluminum fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
Downloads
