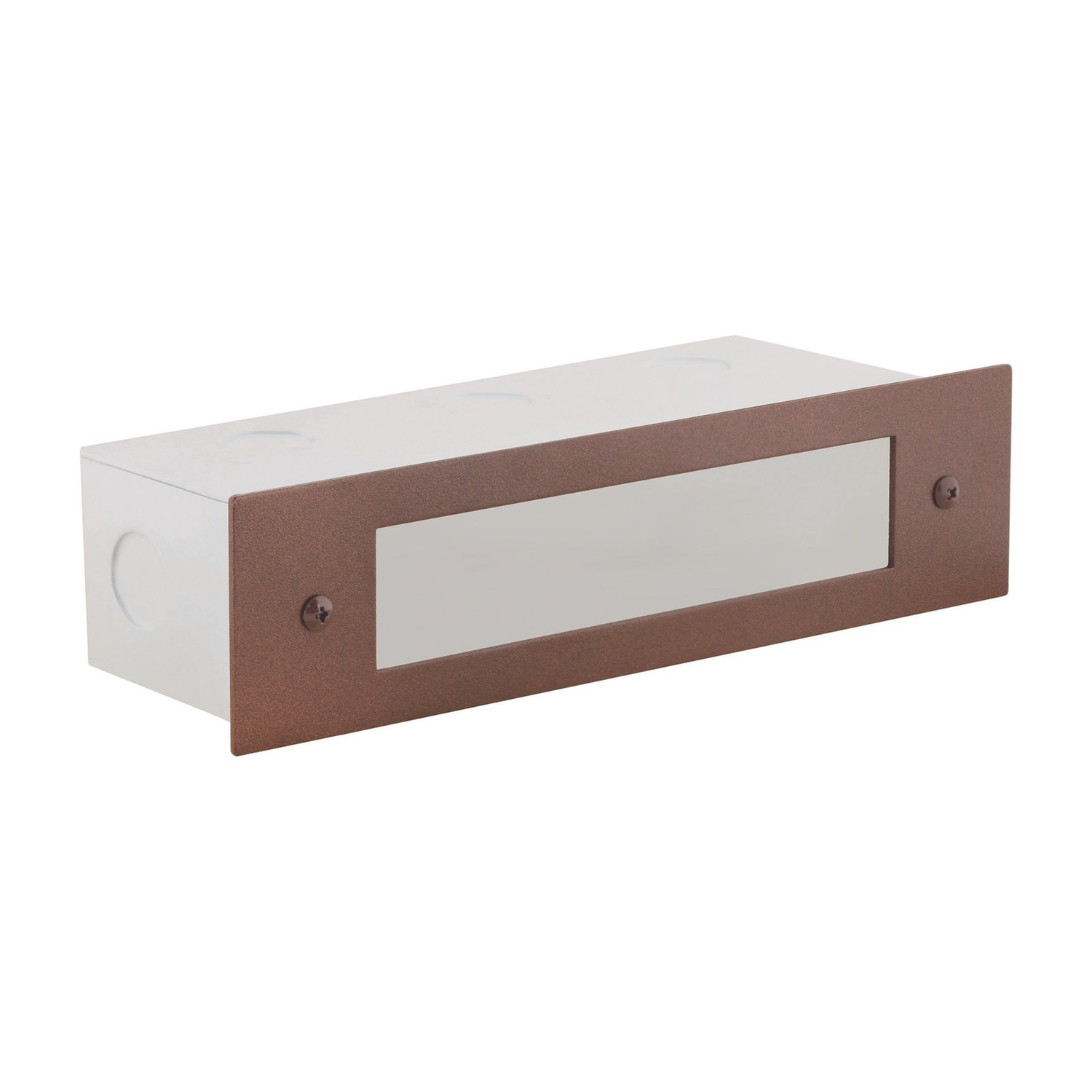

Lensed Brick Step Light, Recessed, 9 Inch, Rust, 210 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview
This Rust lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed brick light with 9" W x 2.25" H faceplate; aluminum housing with Faceplate and polyester UV coating in Rust finish; ship weight 4 lb
- Frosted high-impact White polycarbonate lens with silicone gasket sealing faceplate to housing
- Surface-mount design with recessed back box, self-leveling adjustable brackets, and 3 x 1/2" NPT inlets for concrete, brick, and masonry installations
- Two Bayonet (SCB) sockets on aluminum reflector; 27W max per socket; requires 12V remote transformer
- Bundled with two 2W LED SCB lamps: 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; dimmable; 8–21V operating voltage range; output applies to each included lamp, and total fixture output is not stated
- Prewired with 12" direct-burial cord
- Silicone-filled wire nut option available
- Warranty: 5-year fixture warranty
This Rust lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed brick light with 9" W x 2.25" H faceplate; aluminum housing with Faceplate and polyester UV coating in Rust finish; ship weight 4 lb
- Frosted high-impact White polycarbonate lens with silicone gasket sealing faceplate to housing
- Surface-mount design with recessed back box, self-leveling adjustable brackets, and 3 x 1/2" NPT inlets for concrete, brick, and masonry installations
- Two Bayonet (SCB) sockets on aluminum reflector; 27W max per socket; requires 12V remote transformer
- Bundled with two 2W LED SCB lamps: 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; dimmable; 8–21V operating voltage range; output applies to each included lamp, and total fixture output is not stated
- Prewired with 12" direct-burial cord
- Silicone-filled wire nut option available
- Warranty: 5-year fixture warranty
Overview
This Rust lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed brick light with 9" W x 2.25" H faceplate; aluminum housing with Faceplate and polyester UV coating in Rust finish; ship weight 4 lb
- Frosted high-impact White polycarbonate lens with silicone gasket sealing faceplate to housing
- Surface-mount design with recessed back box, self-leveling adjustable brackets, and 3 x 1/2" NPT inlets for concrete, brick, and masonry installations
- Two Bayonet (SCB) sockets on aluminum reflector; 27W max per socket; requires 12V remote transformer
- Bundled with two 2W LED SCB lamps: 200 lumens at 2700K and 210 lumens at 3000K, CRI 80, 25,000-hour rated life; dimmable; 8–21V operating voltage range; output applies to each included lamp, and total fixture output is not stated
- Prewired with 12" direct-burial cord
- Silicone-filled wire nut option available
- Warranty: 5-year fixture warranty
Specifications
| Lensed Brick Step Light, Recessed, 9 Inch, Rust, 210 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 200 - 210LM |
| Efficacy | 100LM/W |
| Wattage | 2W |
| Voltage | Low Voltage |
| Dimmable | Dimmable |
| Color Temperature | 2700K, 3000K |
| CRI | 80+ |
| LED Heads | 2 |
| Bulb Base | SCB |
| Mount Type | Surface Mount |
| Dimensions | 9" W x 2-1/4" H |
| Finish | Rust |
| Material | Aluminum |
| Lifetime | 25,000 Hours |
| Warranty | Five (5) years warranty on fixture housing/faceplate for RT finish; Five (5) years Manufacturer's Warranty for LED module |
