- Lumens: 200 - 210LM
- Voltage: Low Voltage
- Wattage: 2W
- Dimming: Dimmable
- Warranty: Five-year warranty on housing and faceplate; five (5) year manufacturer's warranty on the LED lamp

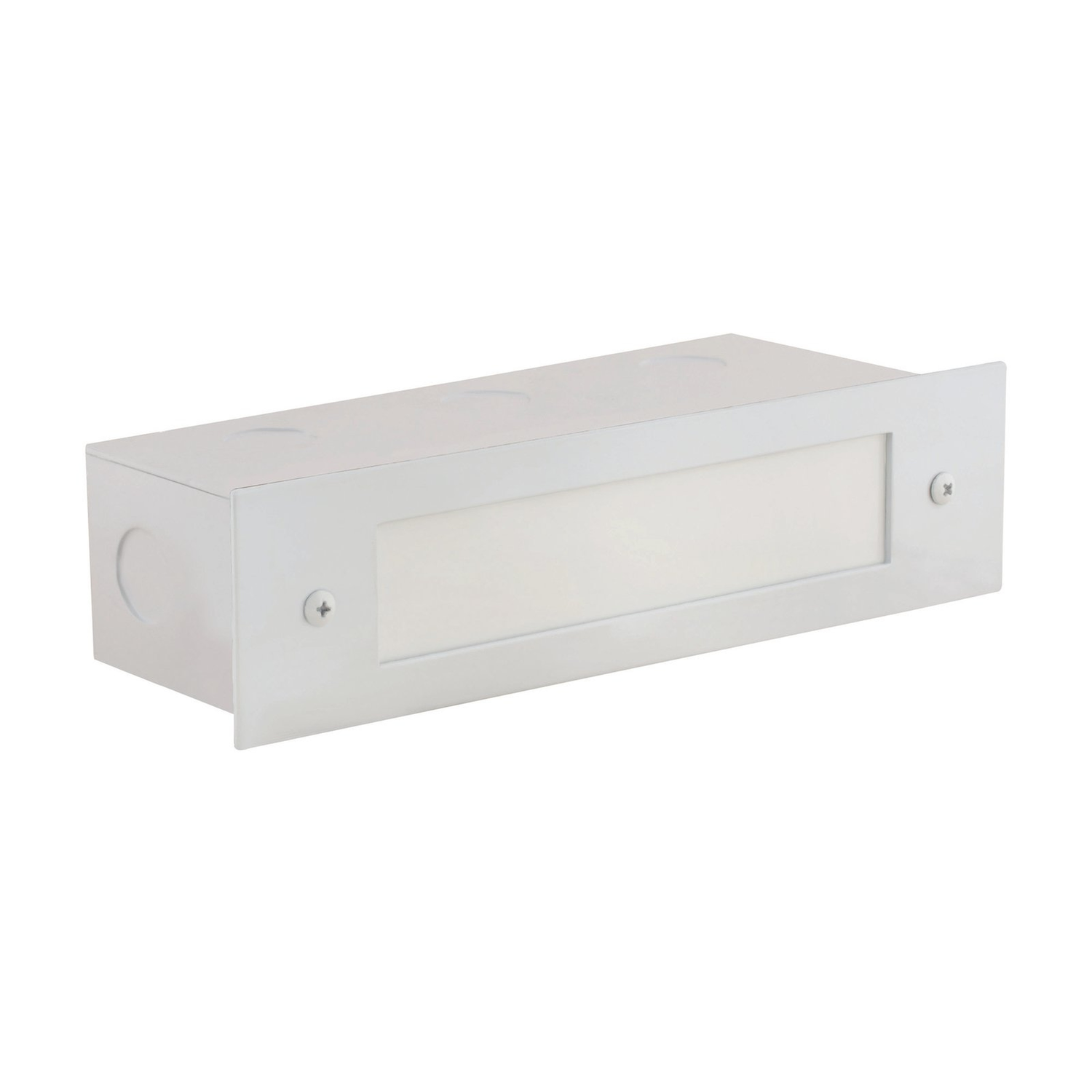

This White lensed brick step light is a low-voltage fixture designed for recessed masonry installation, with a 9 Inch customer-facing faceplate and two included BA15S LED lamps. Each included lamp produces 200 lumens at 2700K and 210 lumens at 3000K according to the Corona manufacturer lamp table. The manufacturer does not state a separate total-fixture lumen value, so the listed lamp output is not doubled.
Features
-
- Lensed boxed step/brick light with frosted high-impact polycarbonate lens
- Finish: White
- Faceplate with polyester UV coating
- Heavy-duty corrosion-resistant galvanized steel recessed back box with self-leveling adjustable mounting bars
- Socket: Two SCB bayonet sockets attached to aluminum reflector
- Includes two SCB LED lamps (2W each): 200 lumens at 2700K and 210 lumens at 3000K, warm-white output, CRI 80, 25,000-hour rated life, approx 20W halogen equivalent; output applies to each included lamp, and total fixture output is not stated
- Electrical: 12V system; LED lamp operating voltage range 8–21V; remote transformer required
- Prewired with 12" direct-burial cord
- Mounting: Surface mount using recessed back box
- Three 1/2" NPT inlets
- Dimensions: Faceplate approx 9" W x 2-1/4" H; back box approx 8" W x 2" H; depth approx 3"
- Warranty: 5-year fixture warranty
