Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

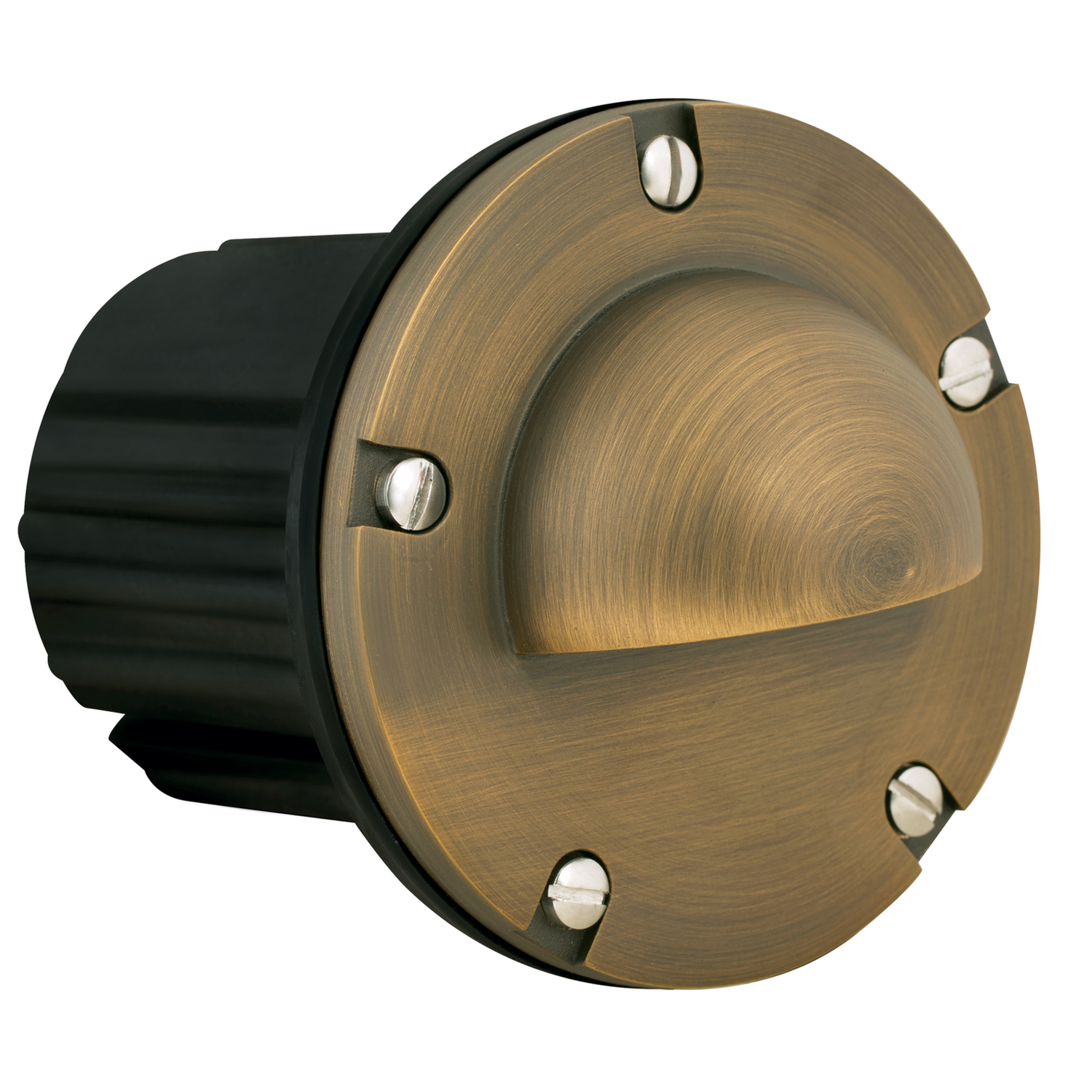

This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing (high UV stability)
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for aiming
- Includes COB LED MR16 lamp: 5W, wide flood (WF) beam, 2700K, approx 350 Lumens, approx 50,000-hour rated life, dimmable; LED operating range 9–17V
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Requires remote 12V magnetic transformer (not included)
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing (high UV stability)
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for aiming
- Includes COB LED MR16 lamp: 5W, wide flood (WF) beam, 2700K, approx 350 Lumens, approx 50,000-hour rated life, dimmable; LED operating range 9–17V
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Requires remote 12V magnetic transformer (not included)
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
Overview
This cast brass faceplate and composite housing half-moon step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 60° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Half-moon step/brick light with Antique Bronze finish
- Die-cast brass faceplate with injection-molded composite housing (high UV stability)
- Silicone O-ring seals the faceplate to the housing for weather-tight protection
- Frosted heat-resistant flat glass lens
- Adjustable ceramic bi-pin MR16 socket tilts ±25° with retention clip and Teflon-jacketed leads for aiming
- Includes COB LED MR16 lamp: 5W, wide flood (WF) beam, 2700K, approx 350 Lumens, approx 50,000-hour rated life, dimmable; LED operating range 9–17V
- Prewired with 3 ft of 18-2 SJT-W direct-burial cord
- Requires remote 12V magnetic transformer (not included)
- Dimensions: 4-7/8" Dia face, 6" overall length, approx 4-5/8" depth
Specifications
| Brass Half-Moon Glass Lens Step Light, In-Ground, 5 Inch, Antique Bronze, 60° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 60° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | 4-7/8" Dia. face; 6" overall L; Approx. 4-5/8" D |
| Finish | Antique Bronze |
| Material | Die-cast brass faceplate and injection-molded composite housing |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Limited warranty on cast brass fixture housing per manufacturer terms; Five (5) years limited warranty on LED module |
