4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 350 Lumens
Bulk Savings
automatically applied on carts over $500 - Learn more
Bulk Savings
automatically applied on orders over $500 - Learn more
Volume Discounts automatically applied for orders $500+
Free Shipping on orders $100+
Ships within 1 business dayOverview

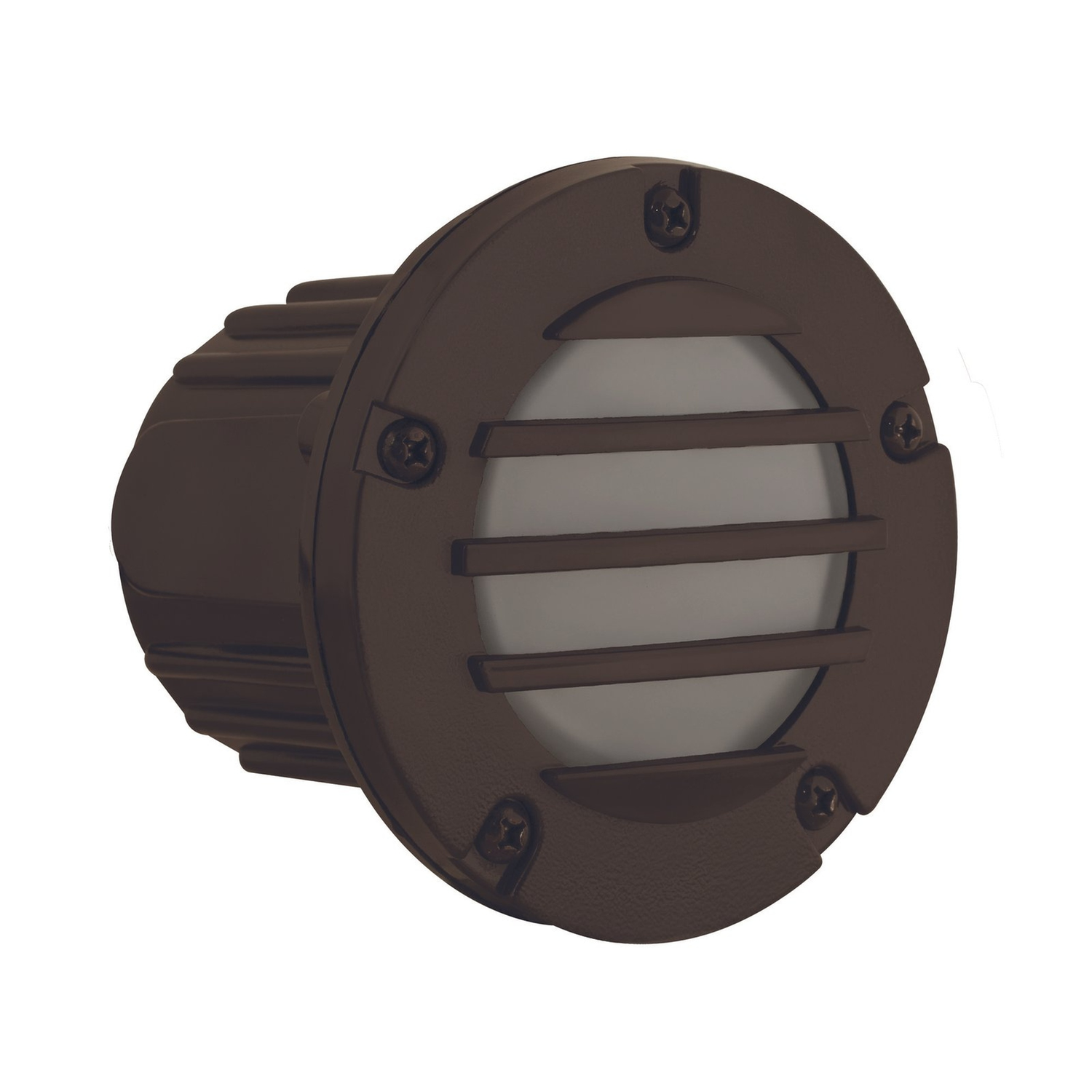

This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens for soft, glare-controlled illumination
- Injection-molded composite housing and face plate for high UV stability with sealed face plate and silicone O-ring for a weather-tight seal
- Includes 5W LED MR16 flood lamp: 350 Lumens, 2700K color temperature, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead for secure lamp connection
- LED operating range: 9–17V; requires remote 12V transformer for proper operation
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounts for in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs

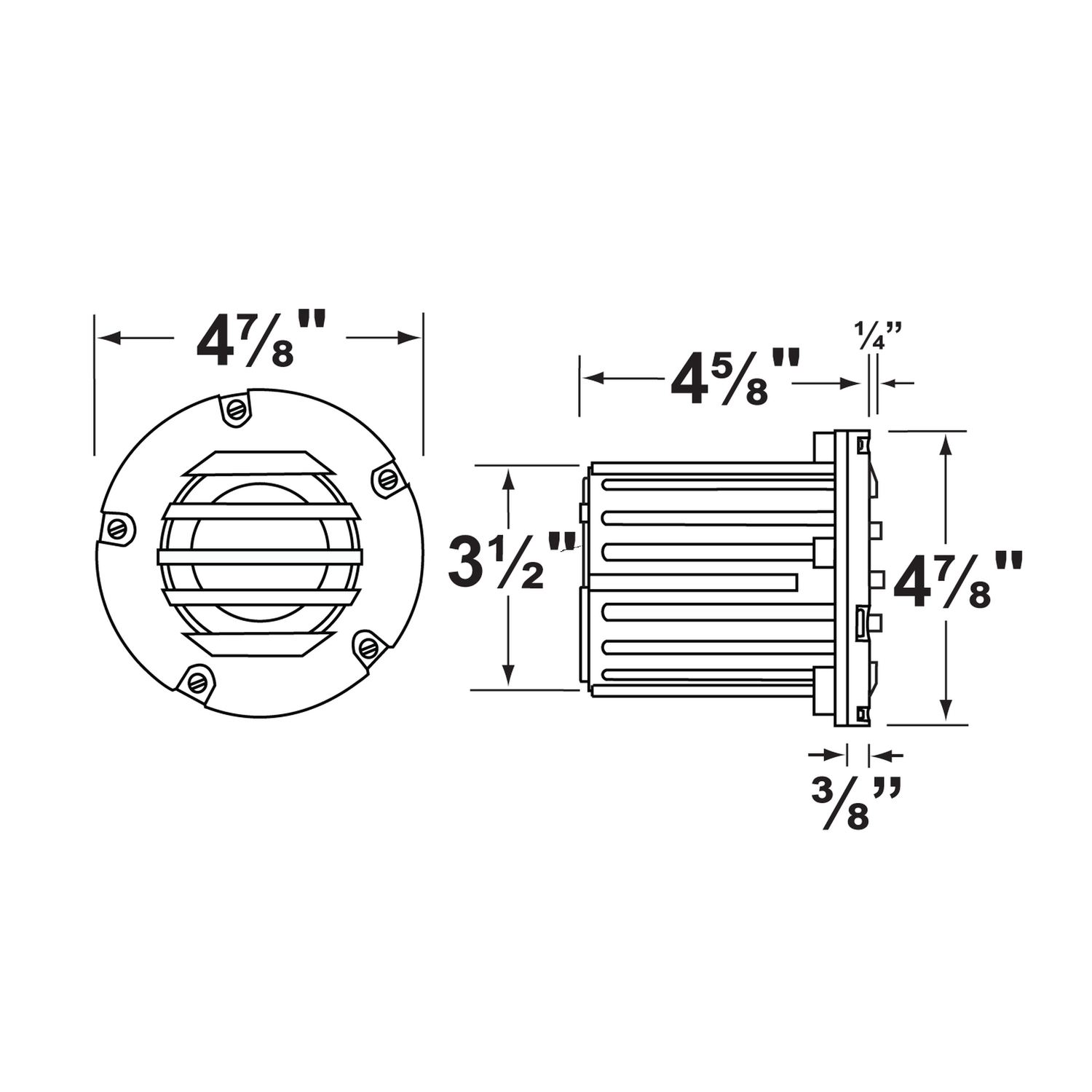

- Approx dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- ETL listed; operating range -22°F to 122°F
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens for soft, glare-controlled illumination
- Injection-molded composite housing and face plate for high UV stability with sealed face plate and silicone O-ring for a weather-tight seal
- Includes 5W LED MR16 flood lamp: 350 Lumens, 2700K color temperature, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead for secure lamp connection
- LED operating range: 9–17V; requires remote 12V transformer for proper operation
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounts for in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs
- Approx dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- ETL listed; operating range -22°F to 122°F
Overview
This injection-molded composite 4-louver step light is designed for in-ground installation and measures 4-7/8 inches across the customer-facing face. The included 2700K MR16 LED lamp produces 350 lumens with a 45° Wide Beam Angle. A remote 12V transformer is required.
Features
-
- Hooded/louvered step light with frosted, heat-resistant glass lens for soft, glare-controlled illumination
- Injection-molded composite housing and face plate for high UV stability with sealed face plate and silicone O-ring for a weather-tight seal
- Includes 5W LED MR16 flood lamp: 350 Lumens, 2700K color temperature, CRI 80, 45° beam angle, dimmable, 50,000-hour rated life
- Top-grade adjustable ceramic bi-pin socket with retention clip and Teflon-jacketed lead for secure lamp connection
- LED operating range: 9–17V; requires remote 12V transformer for proper operation
- Prewired with 3 ft 18-2 SJT-W direct-burial water-resistant cord
- Mounts for in-ground direct burial or concrete encasement
- Concrete pour kit CX-237 recommended for concrete installs
- Approx dimensions: 4-7/8 Inch Dia x 6-1/8 Inch length
- ETL listed; operating range -22°F to 122°F
Specifications
| 4-Louver Glass Lens Step Light, In-Ground, 5 Inch, Bronze, 45° Wide Beam Angle, 350 Lumens Specifications
Download Specs |
|
|---|---|
| Brand | NSL |
| Lumens | 350LM |
| Efficacy | 70LM/W |
| Wattage | 5W |
| Voltage | Low Voltage |
| Operating Temperature | -22°F to 122°F |
| Dimmable | Dimmable |
| Color Temperature | 2700K |
| CRI | 80+ |
| Beam Angle | 45° Wide Beam Angle° |
| LED Heads | 1 |
| Bulb Base | MR16 |
| Mount Type | Surface Mount |
| Dimensions | Approx. 4-7/8" Dia. x 6-1/8" L |
| Finish | Bronze |
| Material | Injection-molded composite |
| Compliance | ETL Listed |
| Certifications | ETL |
| Lifetime | 50,000 Hours |
| Warranty | Injection-molded composite fixture housing warranty per manufacturer terms; five-year limited warranty on LED module |
